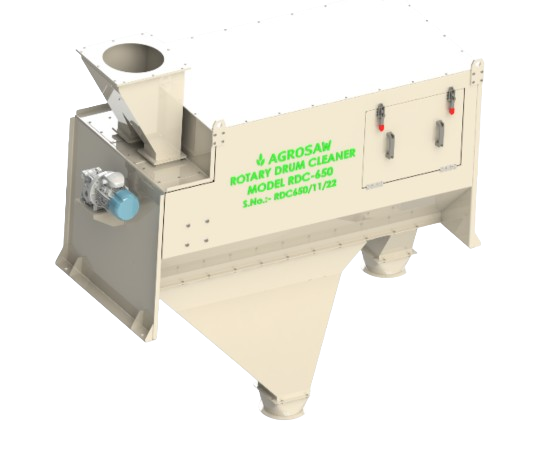

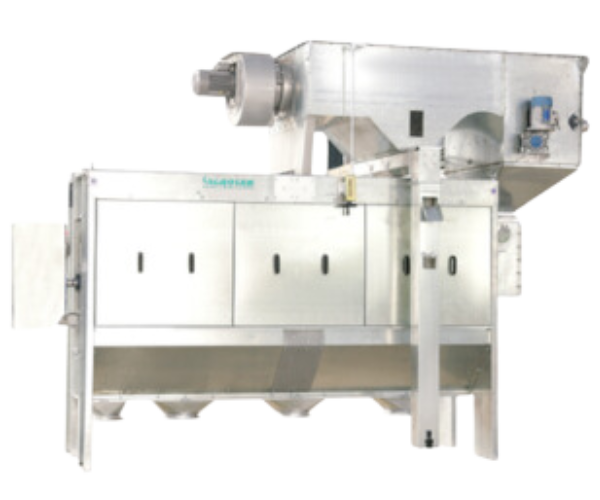

High-Performance Rotary Drum Cleaner for Efficient Grain Cleaning

A Rotary Drum Cleaner / Sizer is a rotating cylindrical machine used in seed and grain processing to clean, separate and size agricultural products according to particle size.
As the drum rotates, the material moves through perforated screens. Different-sized grains or seeds pass through different openings, allowing the product to be separated into required size fractions.

A Rotary Drum Cleaner is used to clean seeds and grains by separating impurities based on size.
The material passes through a rotating perforated drum/screen. As the drum rotates:
Undersized impurities such as small particles, broken grains and dust fall through the screen.
Proper-sized grain or seed moves forward through the drum.
Oversized impurities such as sticks, large chaff and other foreign material are separated.

Yes, a Rotary Drum Cleaner can be suitable for rough or pre-cleaning, depending on the crop and the type of impurities present.
It is particularly useful when the incoming material contains large foreign materials, oversized impurities, undersized particles, broken grains, sticks, straw and coarse trash. The rotating screen separates material primarily by size.

A Rotary Drum Cleaner is important because it provides an effective first stage of cleaning for seeds and grains, especially when the incoming material contains a high level of coarse impurities.
* Effective Rough Cleaning
* Protects Downstream Machines
* Improves Processing Efficiency
* Handles Heavy Impurity Loads
* Continuous Operation
* Size-Based Separation

A Rotary Drum Cleaner can sometimes be skipped when the incoming seed or grain is already relatively clean and does not contain a significant amount of coarse, oversized or undersized impurities.

It may be considered for skipping when:
* Raw material is already pre-cleaned and has low levels of coarse trash.
* The existing pre-cleaner or cleaning equipment can handle the required rough-cleaning load.
* The crop does not contain much straw, sticks, large chaff, broken grain or other coarse impurities.
* Space or process-layout constraints make an additional rough-cleaning stage impractical.
* Trials confirm that removing the Rotary Drum Cleaner does not overload or reduce the performance of downstream machines.

A Rotary Drum Cleaner is used for pre-cleaning and rough cleaning of seeds and grains by removing larger and unwanted impurities before further processing.
Key Uses:
* Removes large impurities
* Separates oversized and undersized material
* Protects downstream machinery
* Handles heavily contaminated raw material
* Acts as a pre-cleaner
* Continuous operation
